Lithium iron phosphate battery is a secondary battery, the main direction is power battery, which has great advantages over Ni-H, Ni Cd battery and lead-acid battery.
(1) High efficiency output: standard discharge for 2~ 5C, continuous high current discharge up to 10C, high efficiency output: standard discharge for 2~5C, continuous high current discharge up to 10C, instant 10C pulse discharge (10SEC) up to 20C, pulse discharge (10SEC) up to 20C ,excellent service life
(2) High safety, even if the battery internal or external damage, the battery does not burn, does not explode safety, even if the battery internal or external damage, the battery does not burn ,does not explode heat resistance is good, and can withstand 3~5C or even higher charge and discharge speed 3~5C heat resistance is good, and can withstand 3~5C or even higher charge and discharge speed.
(3) Good performance at high temperature: working environment external temperature 65°C,good performance at high temperature: working environment external at 65°C, the internal temperature will be up to 95°C, the temperature at the end of the battery discharge can reach 160°C, but the structure of the battery is safe and then no damage after discharging to zero volt

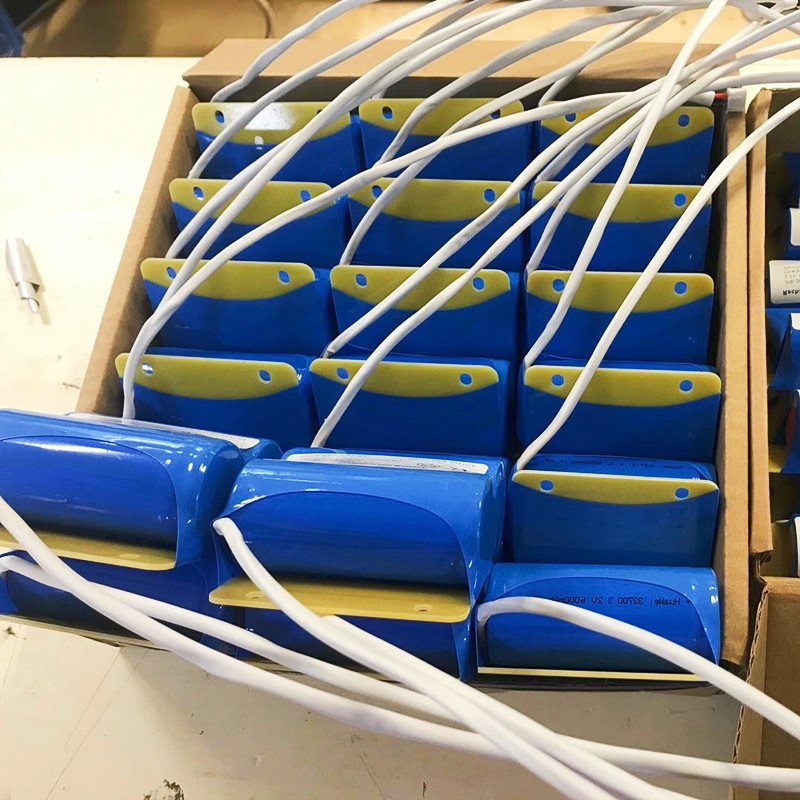

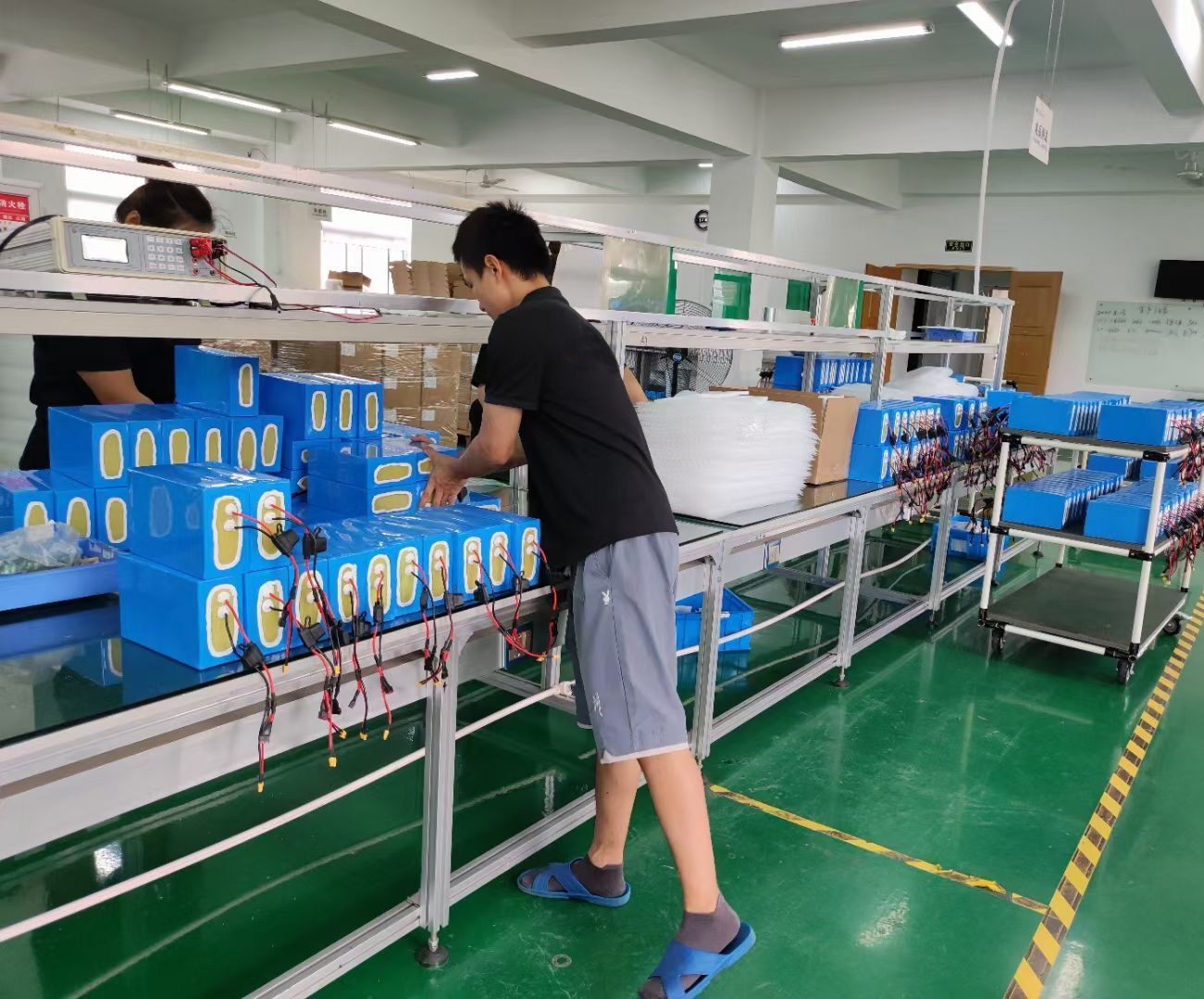

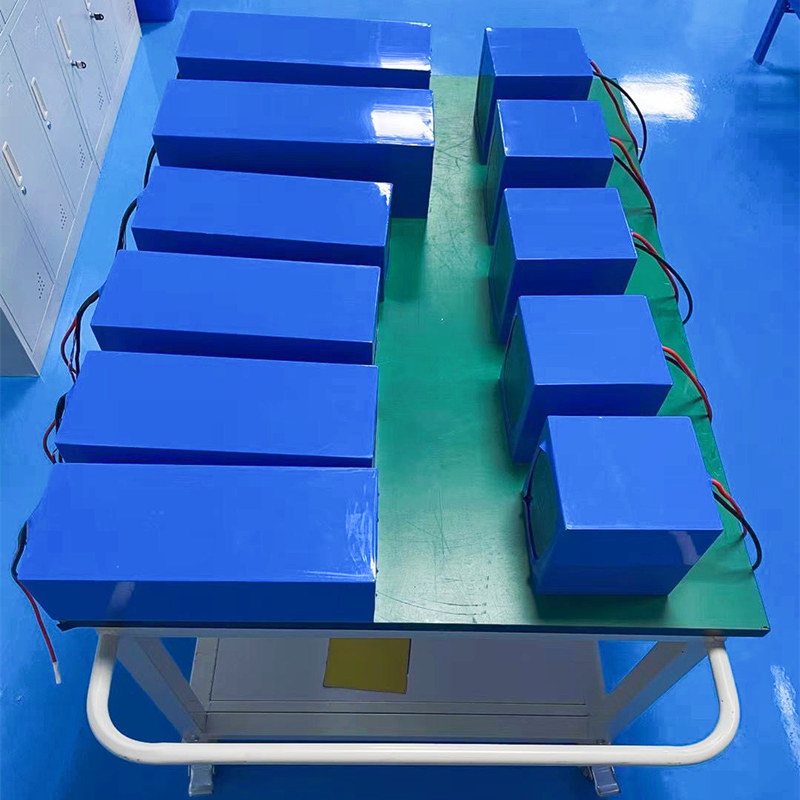

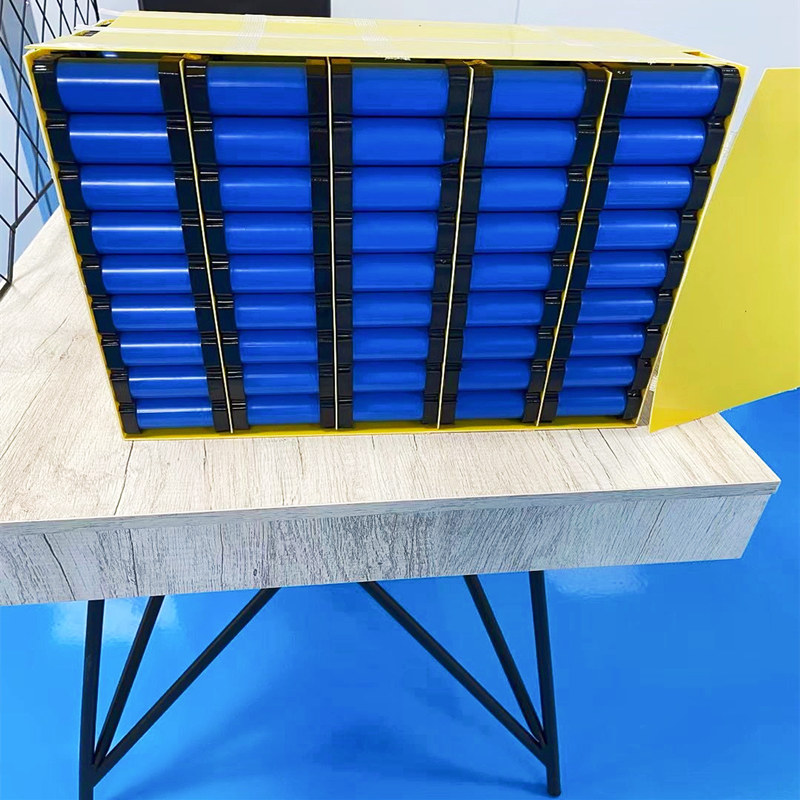

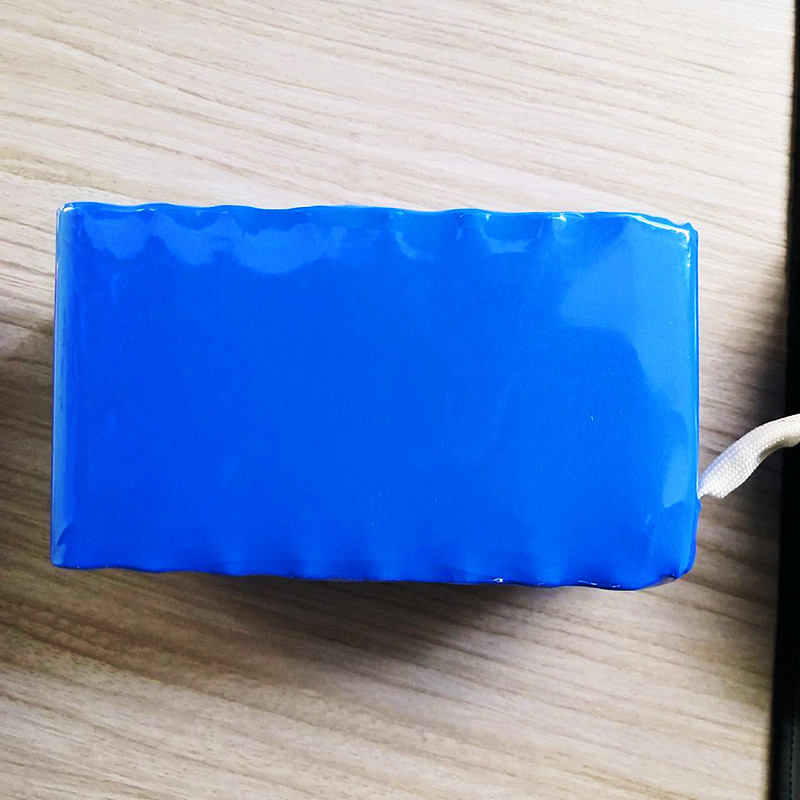

>Production details
Different series of capacity batteries: 10ah, 20ah, 30ah, 32ah,36ah ······
A variety of capacity with high circulation cycle times, long life, stable performance, etc;
The wiring terminal can be customized.
Common processing combinations of various lithium batteries can be customized.
>Model list
| Battery Model | Lithium ion Battery Pack 7.4V 3600mah |
| Battery meterial | Rechargeable lithium ion 18650 battery pack |
| Nominal Voltage | 7.4V |
| Nominal Capacity | 3600mAh |
| Output voltage range | 6~8.4V |
| Continuous operating current | 2A |
| Max.discharge current | 4A |
| Standard charging voltage | 8.4V±0.05V |
| Standard charging current | 0.72A(0.2C) |
| Over discharge protection voltage | 6V |
| Over charged protection voltage | 8.4V |
| Charging Temperature | -20~60°C |
| Discharge Temperature | 0~45°C |
| Lithium battery protection | Short circuit protection, overcharge, overprofit protection, overcurrent protection, temperature protection, balance, etc. |
| Input & output port | Other on request |
| Dimensions | Max. T 72mm*W 52mm*L 12mm(customizable) |
| Weight | Approx 14g |
| Cycle Life | ≥1000 times |
We can design voltage/current/capacity/size/charging circuit according to customer's special requirements to meet the personalized lithium battery pack.
>Applications
1.High-End Flashlights,
2.Portable electronics,
3.Laptop Battery Cell s,
4.Customized Battery Pack Solutions,
5 Electric vehicle, and aerospace applications
6.Solar Lawn, Remote Control
7.Electric tools,electric vehicles, toys,
8.Wind energy system,landscape energy storage,
9.Backup Power Supply, Medical Device and so on.
>Warning
To ensure proper use of the battery please read the manual carefully before using it.
Handling
1. Do not expose to, dispose of the battery in fire.
2. Do not put the battery in a charger or equipment with wrong terminals connected.
3. Avoid shorting the battery
4. Avoid excessive physical shock or vibration.
5. Do not disassemble or deform the battery.
6. Do not immerse in water
7. Do not use the battery mixed with other different make, type, or model batteries.
8. Keep out of the reach of children.
Charge and discharge
1. Battery must be charged in appropriate charger only.
2. Never use a modified or damaged charger.
3. Do not leave battery in charger over 24 hours.
Storage
1. Store the battery in a cool, dry and well-ventilated area.
2. Disposal
Regulations vary for different countries. Dispose of in accordance with local regulations.
>Packing & Shipping
