Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System

Product Categories
SUZHOU FOBERRIA NEW ENERGY TECHNOLOGY CO.,LTD.
Contact Now

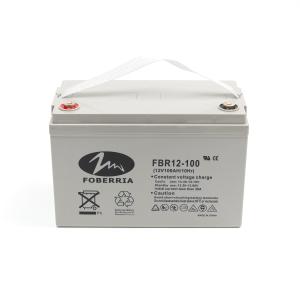

Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System

  • 1
  • 2

Brand Name : FOBERRIA

Model Number : FBR12-90; FBR12-100

Certification : CE / ISO9001

Place of Origin : CHINA

MOQ : 200pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 80,000 per month

Delivery Time : 25-30days

Packaging Details : Cartons with pallet

Product Name : Sealed Lead Acid batteries

Model : FBR12-90; FBR12-100

Volts : 12V

Nominal Capacity : 90AH/100AH

Terminal type : F14

Case Material : ABS

Characteristic : Low Self Discharge

Application : UPS, Communication System，Electric Power Storage

Color : Grey or Black

Installation : Fixed

Rechargeable : Rechargeable

Electrolyte : acid battery

ODM/ODM : Acceptable

Origin : Made in China

Terminal : Copper

Contact Now

Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System

> Specification
Model NO. FBR12-90 FBR12-100
Nominal Voltage 12V 12V
Capacity(25ºC) 10HR(10.8V) 90Ah 100Ah
5HR(10.5V) 79Ah 88Ah
1HR(9.60V) 55.6Ah 61Ah
Dimensions Length 306±2mm 330±2mm
Width 169±2mm 171±2mm
Height 211±2mm 214±2mm
Total height 214±2mm 220±2mm
Approx. Weight 27kg±4% 29.5kg±4%
Terminal type F14 F14
Internal resistance(Fully charged,25ºC) Approx 5mΩ Approx 4.5mΩ
Capacity affected by
temperature(20HR)		 40ºC 102% 102%
25ºC 100% 100%
0ºC 85% 85%
-15ºC 65% 65%
Self-discharge(25ºC) 3month Remaining Capacity:91% Remaining Capacity:91%
6month Remaining Capacity:82% Remaining Capacity:82%
12month Remaining Capacity:65% Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF) 25ºC±3ºC(77ºF±5ºF)
Operating
temperature range		 Discharge -15ºC-50ºC(5ºF-122ºF) -15ºC-50ºC(5ºF-122ºF)
Charge -10ºC-50ºC(14ºF-122ºF) -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF) -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage(25ºC) 13.5 to 13.8V
Temperature compensation:-18mV/ºC		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage(25ºC) 14.5 to 15.00V
Temperature compensation:-30mV/ºC		 14.5 to 15.00V
Temperature compensation:-30mV/ºC
Max charging current 27A 30A
Max discharging current 800A(5sec.) 800A(5sec.)
Max discharging current 10years 10years
> Structure and composition
Component Pos. plate Neg. plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper

> Main Features

1. Maintenance free sealed lead acid battery

As it is valve-regulated sealed lead acid battery.sealed and glass mat is used .acid is trapped inside.

so refilling is not needed and is leak proof.

2. No memory effect

Some Sealed Lead Acid batteries .say nickel –cadmium batteries will become conditioned to provide less power offer repetitious short

usage /discharge.

3. Low self discharge

The self –discharge rate for FOBERRIA Sealed Lead Acid Battery is about 2-3% per month at room .

temperature compared with 20-30% for other common battery systems.

4. Longer service life

Used thick and massive calcium grate ensure that FOBERRIA battery has a longer service life over 10years.

5. High discharge rate

Since the internal resistance is low .the battery can provide high rate of discharge.

6.Wide operation temperature range

VRLA Sealed Lead Acid Battery capacity is rated at 25°C, and will operate from 15°C +50°C;

when it is fly charged Ambient temperature is 25°C.Service life will be more efficient under 15’C to 25”C .

>Constant Current Discharge Characteristics(A,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.6V 82.8 63.8 38.2 23.5 13.9 9.88 7.98 6.82 4.69 3.87 2.05
9.9V 80.4 62.3 37.4 23.1 13.8 9.83 7.94 6.78 4.66 3.86 2.05
10.2V 77 60 36.3 22.5 13.7 9.76 7.88 6.73 4.63 3.85 2.04
10.5V 73.7 58 35.4 22.1 13.5 9.69 7.83 6.69 4.6 3.83 2.03
10.8V 69.6 54.9 34.1 21.4 13.1 9.4 7.59 6.49 4.46 3.8 2.01

>Constant Power Discharge Characteristics(Watt,25ºC)

F.V/Time 10min 15min 30min 60min 2h 3h 4h 5h 8h 10h 20h
9.60V 895 701 428 268 161 116 93.9 80.6 55.7 46.2 24.6
9.90V 868 684 420 264 160 116 93.3 80.2 55.4 46.1 24.6
10.2V 832 659 407 257 158 115 92.7 79.6 55 46 24.5
10.5V 796 636 397 252 156 114 92.1 79.1 54.6 45.7 24.3
10.8V 752 603 383 244 152 111 89.3 76.7 53 45.4 24.2
>Discharge diagram
Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System
Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System
> Application

1. Solar power system(off-grid solar power system, solar street light system, solar garden light system);

2. Wind Power System;

3. UPS and computer backup power;

4. Telecommunication system;

5. Power station System;

6. Railway System;

7. Emergency lighting system;

8. Automatic control system;

9. Alarm system for fire protection, security.

Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System
>Assembling
Factory sealed lead acid battery maintenance 12V 90ah 100ah For back up power System
